Track Ace
80็ฑณ้ (yuวn)่ท้ข่ถ ๅฟซ้็ๅคงไปถๆๆๆนๆก
ๆธฌ(cรจ)้่่ๆฟๅ ่ท่นคๅ็็ตๅ

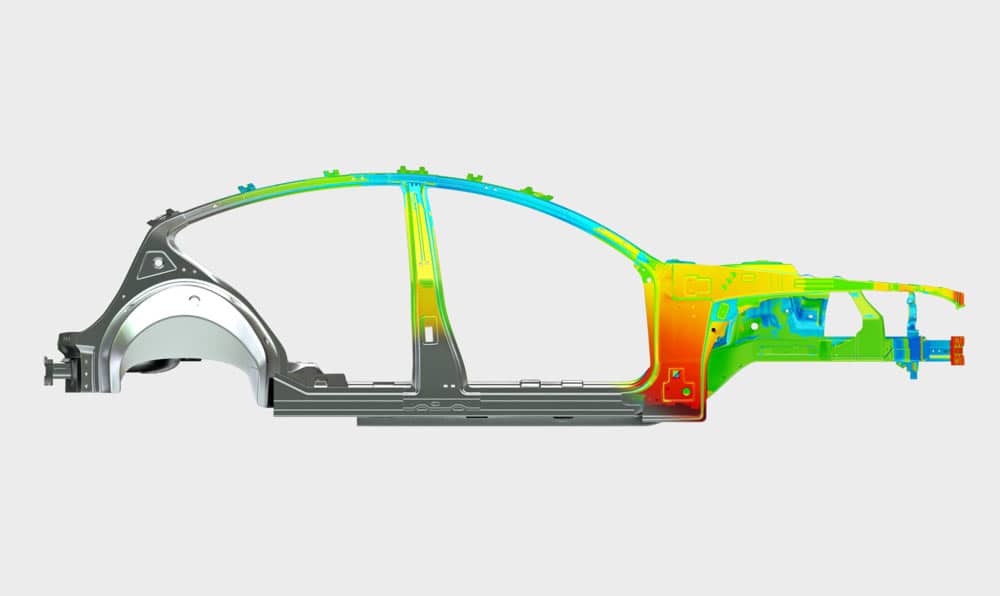

็ง็ๆACEๆธฌ(cรจ)้่้ ๅๆฟๅ ่ท่นคๅ๏ผ่ผๆพๅฏฆ(shรญ)็พ(xiร n)ๅคง่ๅ็3Dๆธฌ(cรจ)้ใ200mm่ถ ๅฏฌๆฟๅ ็ท่ฎTrack ACE่ฝๅค ?qลซ)ๅดฟF(xiร n)้ซๆง่ฝ็ๅฟซ้ๆๆ๏ผ่ฉฒๆนๆกไธๅ ้ๆไบๆฟๅ ่ท่นคๅ็่ท้ข่็ฒพๅบฆๅช(yลu)ๅข(shรฌ)๏ผๅๆ(shรญ)ไนๅ ผๅ ทไบACEๆธฌ(cรจ)้่็้ๆดปๆง๏ผไพฟๆๆงไปฅๅ็ฒพๆบ(zhวn)ๆงใ
ๅฆไฝๅฏฆ(shรญ)็พ(xiร n)๏ผ
่ท่นคๅ่ท้จๆธฌ(cรจ)้่ๅ็น่ขซๆธฌ(cรจ)็ฉ้ซ็ไฝ็ฝฎ็งปๅ(dรฒng)๏ผ่จ้ๅนถๅๆๅ่ๅๆจ(biฤo)ใ
่ท่นคๅๅฐ(duรฌ)ๆธฌ(cรจ)้่็ๆฏไธๅ(gรจ)ไฝ็ฝฎ้ฒ(jรฌn)่กๆจ(biฤo)่จ๏ผ้ฟๅ
ไบๅฏฆ(shรญ)ๆ(shรญ)่ท่นคๆนๅผไธญๅ ?yร n)ๆชซBๆฅๆท้่ไธๅคฑไฝ็ฝฎๅๆจ(biฤo)็้ขจ(fฤng)้ช(xiวn)ใ

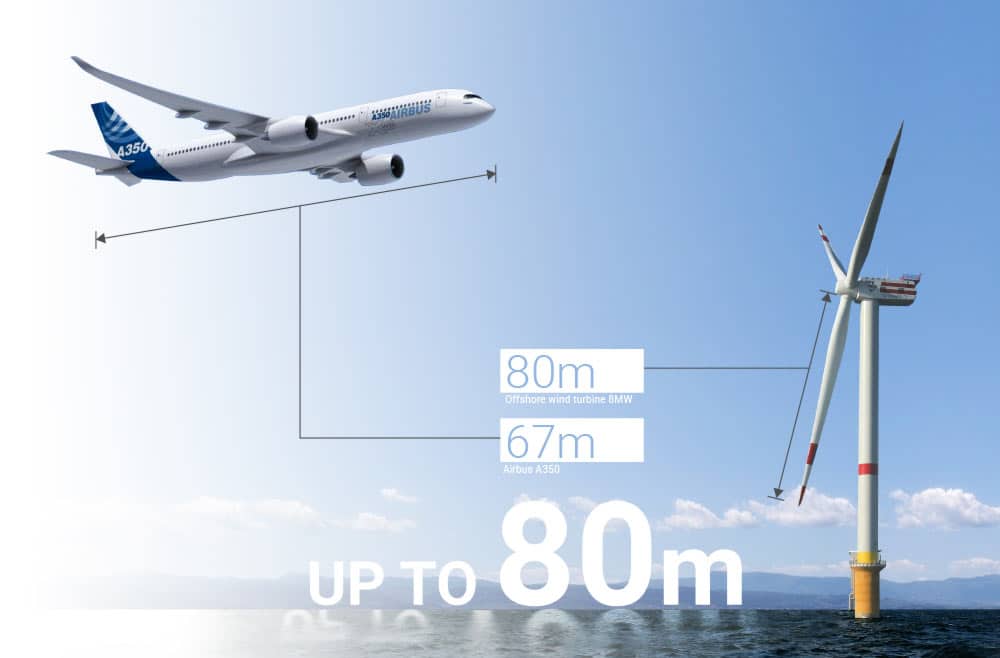

80็ฑณ่ถ ๅคงไปถ็ๆธฌ(cรจ)้
Track ACEๆนๆก่ฃ(bว)ๅ จไบๅธ้ขไธๅฐ(duรฌ)ๅคงไปถๅ้ (yuวn)่ท้ข็ๆธฌ(cรจ)้้ๆฑใ80็ฑณ็ๆ้ (yuวn)่ผปๅฐ่ท้ข๏ผ่ฝๅค ?qลซ)ๅดฟF(xiร n)ๅฐ(duรฌ)้ฃๆฉ(jฤซ)๏ผ้ขจ(fฤng)ๅๆธฆ่ผชๆฉ(jฤซ)ๅจๅ ง(nรจi)็ๅคง้จไปถ3Dๆๆใ้กฏ็ถ๏ผๆด่ป็ๆธฌ(cรจ)้ไนไธๅจ่ฉฑไธใ
็บๆจ็ฏ(jiรฉ)็ๆดๅคๆ(shรญ)้็ๅฟซ้ๆๆ
- 200mm่ถ ๅฏฌๆฟๅ ็ท๏ผSkyline Wideๆๆๅ๏ผๆๅณ่ๆดๅฐ็ๆๆๆฌกๆธ(shรน)่ๆ(shรญ)้ใ
- ้ซ้ ป็ๆๅณ่่ฝๅค ้ฉๆ(yฤซng)ๆดๅฟซ้็ๆ้จ็งปๅ(dรฒng)ใ
- ้ป(diวn)ไบๅๆธ(shรน)ๅฎๅถไธ้ต้(guรฒ)ๆฟพๆไธ็ธ้(guฤn)้ป(diวn)ไบ๏ผ้ซๅฏๅบฆๅฐๆณจ็ดฐ(xรฌ)็ฏ(jiรฉ)๏ผไฝๅฏๅบฆๅธ้กฏ่กจ้ข็ต(jiรฉ)ๆง(gรฒu)ใ
- ็ก(wรบ)้่ฒผ้ป(diวn)็3Dๆๆใ
ๆไฝณไฝฟ็จ่้ฉๅบฆ
- ่ฝๅค ๅฟซ้ๅจ้ๆฅ่งธๅผ็่กจ้ขๆๆ่ๆฅ่งธๅผๅนพไฝๆขๆธฌ(cรจ)ไน้ไพ(lรกi)ๅๅๆใ
- ๆฟๅ ่ท่นคๅ็ธฝ่ฝๅจๆ็ญๆ(shรญ)้ๅ ง(nรจi)ๆๆๅฐๆธฌ(cรจ)้่็ๆฐไฝ็ฝฎใ
- ไธ่ ณๆถ่ผๆพ็งปๅ(dรฒng)ๆธฌ(cรจ)้่ใ
- ่ท่นคๅ่ๆธฌ(cรจ)้่ไน้็ก(wรบ)้้กๅคๆฅ็ทใ
- ็ก(wรบ)้้ (yรน)็ฑ๏ผ้ๆฉ(jฤซ)ๅณ็จใ
- ่็ถ(dฤng)ไธๅธ้ขไธ็ไธปๆตๆธฌ(cรจ)้่ปไปถๅ ผๅฎน๏ผ็ก(wรบ)้ๅฆๅค้ ๅ็นๆฎ่ปไปถใ
็ฐก(jiวn)ๅฎๅฟซ้็ๅฎไฝๆไฝ
- 1.ๅฐๅฐ(duรฌ)ๆฅๅฃ่Aceๆธฌ(cรจ)้่้ฃๆฅ๏ผ้ๅธถ้ทๅฐผ็ดนๆฅๅฃ็ๅฏ้ๅพฉ(fรน)ๆงๅฎไฝๅ่ฝใ
- 2.ๅฐSMR็ๆพ็ฝฎๅจๅฐ(duรฌ)ๆฅๅฃๅ ง(nรจi)ใ
- 3.ๆๅ่ท่นคๅ๏ผ็จๆธฌ(cรจ)้่ๅจ็ฉบ้ไธญๅ15ๅ(gรจ)้ป(diวn)็็ถฒ(wวng)ๆ ผใ
1ๅ้ๅ ง(nรจi)ๅณๅฏๅฎๆๅๅงๅฎไฝๆไฝใ
็ก(wรบ)้ฐๅฝฑๅ(qลซ)ๅ
ๅพ ๆฟๅ ่ท่นคๅ็ขบๅฎๆธฌ(cรจ)้่็ไฝ็ฝฎๅ๏ผๆไฝๅกไพฟๅฏไปฅ็จ(dรบ)็ซไฝฟ็จๆธฌ(cรจ)้่ๅฎๆไฝๆฅญ(yรจ)๏ผๆไฝๅกๅฏๅจ็ฉบ้ๅ ง(nรจi)่ช็ฑ็งปๅ(dรฒng)ๆฉ(jฤซ)ๅจ๏ผ็ก(wรบ)้ๆ(dฤn)ๅฟๆธฌ(cรจ)้่ๅๆฟๅ ่ท่นคๅไน้็้ฃๆฅๅ้กใ่ฉฒๆนๆกๆๅไฟ่ญไบๅทฅไฝ่ป้ๅ ง(nรจi)ไฝๆฅญ(yรจ)็้ฃ็บ(xรน)ๆงใ
้็จ(dรบ)็ซ็ณป็ตฑ(tวng)ๅธถไพ(lรกi)ๆด้ซ็ๆ่ณๅๅ ฑ(bร o)็
็จ(dรบ)็ซไฝฟ็จ่ท่นคๅ๏ผๅ ผๅฎนSMRๆขๆธฌ(cรจ)๏ผ
- ้ (yuวn)่ท้ข็3Dๆธฌ(cรจ)้
- ๆฉ(jฤซ)ๅจๅฐ(duรฌ)้ฝ

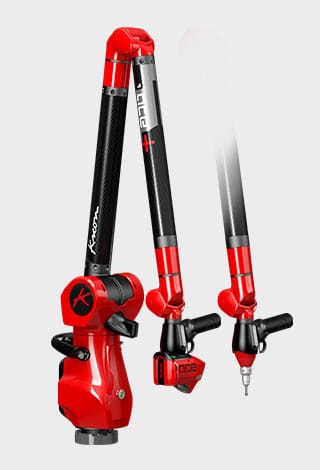

็จ(dรบ)็ซไฝฟ็จAceๆธฌ(cรจ)้่
- ้ฉ็จไบ็นๅฐ็ฉบ้่่ปๅ ง(nรจi)็ๆธฌ(cรจ)้
- ๅฏๅฎๆๅพ1cm่ณ4m็้ถไปถๆธฌ(cรจ)้๏ผๅๆฑบไบ่็ๅฐบๅฏธ๏ผ
- ้ซ้ฃๅบฆ็้ถไปถๆๆ
Trace Ace ๆ่ก(shรน)ๅๆธ(shรน)
Ace 6 axes |
|
|---|---|
| Ace 6-20 | 74 + 5ฮผm/m |
| Ace 6-25 | 80 + 5ฮผm/m |
| Ace 6-30 | 98 + 5ฮผm/m |
| Ace 6-35 | 111 + 5ฮผm/m |
| Ace 6-40 | 122 + 5ฮผm/m |
| Ace 6-45 | 130 + 4ฮผm/m |
| Ace 6-50 | 160 + 4ฮผm/m |
Ace 7 axes |
|
|---|---|
| Ace 7-20 | 77ฮผm + 5ฮผm/m |
| Ace 7-25 | 85ฮผm + 5ฮผm/m |
| Ace 7-30 | 111ฮผm + 5ฮผm/m |
| Ace 7-35 | 121ฮผm + 5ฮผm/m |
| Ace 7-40 | 136ฮผm + 5ฮผm/m |
| Ace 7-45 | 156ฮผm + 4ฮผm/m |
| Ace 7-50 | 182ฮผm + 4ฮผm/m |
Ace+ 6 axes |
|
|---|---|
| - | - |
| Ace+ 6-25 | 64ฮผm + 5ฮผm/m |
| Ace+ 6-30 | 75ฮผm + 5ฮผm/m |
| Ace+ 6-35 | 87ฮผm + 5ฮผm/m |
| Ace+ 6-40 | 101ฮผm + 5ฮผm/m |
| Ace+ 6-45 | 112ฮผm + 4ฮผm/m |
| - | - |
Ace+ 7 axes |
|
|---|---|
| - | - |
| Ace+ 7-25 | 70ฮผm + 5ฮผm/m |
| Ace+ 7-30 | 89ฮผm + 5ฮผm/m |
| Ace+ 7-35 | 98ฮผm + 5ฮผm/m |
| Ace+ 7-40 | 118ฮผm + 5ฮผm/m |
| Ace+ 7-45 | 139ฮผm + 4ฮผm/m |
| - | - |
่ท่นคๅไธป่ฆ็น้ป(diวn)
- ๆธฌ(cรจ)้่ท้ข๏ผ50็ฑณๆ80็ฑณ
- SMRๆขๆธฌ(cรจ)
- ็ก(wรบ)้ๆฅ็ท
- ้ปๆฑ ็บ(xรน)่ช๏ผ10ๅฐๆ(shรญ)
- ็ฐ(huรกn)ๅข่ฃ(bว)ๅ
- ๅฟซ้้ (yรน)็ฑ
- ่ชๅ(dรฒng)้ๅฎ๏ผๅฟซ้้ๆฐๆๆไธๅคฑๆฟๅ ๆ
- ้ๆๆงๅถๅจ
